Technical data …
| Manufacturer | Cooler Master |
| Description | MasterLiquid 240 |
| Compability | Intel 775, 1150, 1151, 1155, 1156, 1366, 2011, 2011-3, AMD FM1, FM2(+), AM2(+), AM3(+), AM4 |
| Dimensions heatsink (W x D x H) | 85.6 x 70 x 49 mm |
| Dimensions Radiator | 277 x 119.6 x 27 mm |
| Dimensions fan | (2x) 120 x 120 x 25 mm |
| max. Power Pump | n/a |
| Fan speed | 12 V DC |
| max. power consumption Fan | (2x) 0.16 A / 1.92 W |
| RPM Fan | 650 – 2000 U/min |
| Airflow | 66.7 CFM / 113 m³/h |
| Loudness Fan | 6-30 dBA |
| Connector Fan | 2x 4-Pin PWM (Y-cable) |
| Tube length | 380 mm |

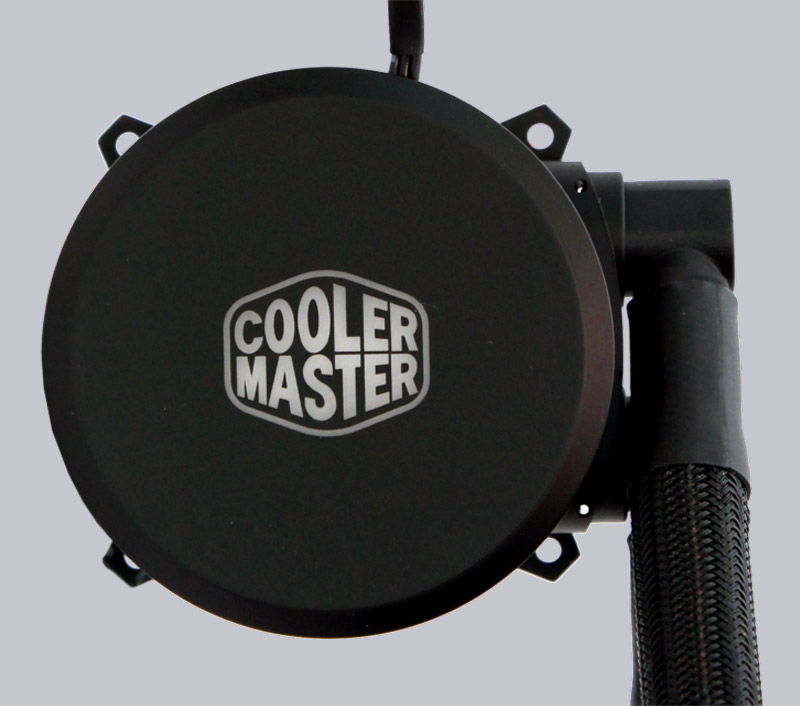

Cooler Master MasterLiquid 240 layout, design and other features …
