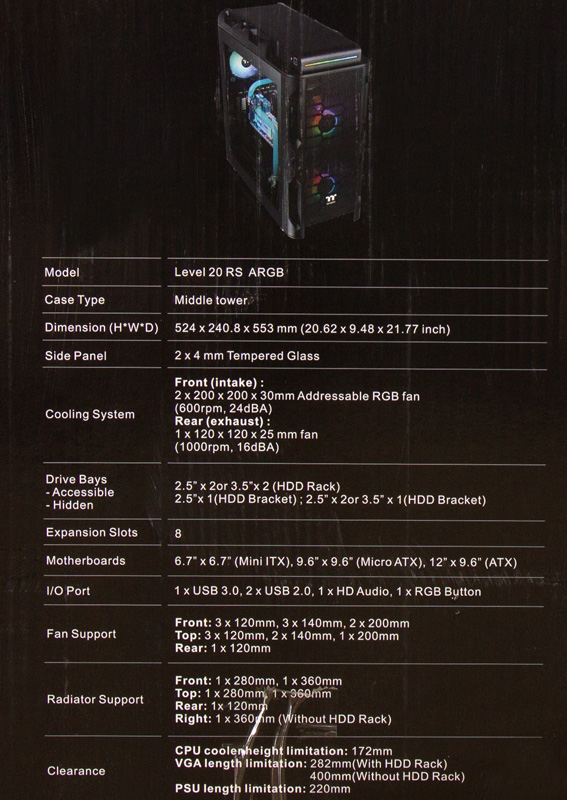

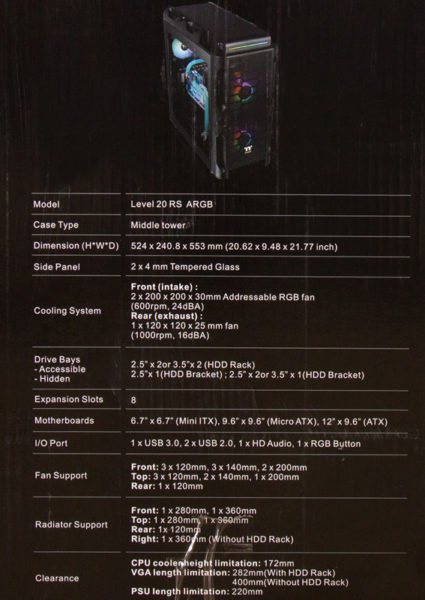

The technical data of the Thermaltake Level 20 RS ARGB case …
| Manufacturer | Thermaltake |
| Description | Level 20 RS ARGB |
| Product number | CA-1P8-00M1WN-00 |
| Dimensions | 524 x 553 x 240.8 mm (HxWxD) |
| Weight | 12.23 kg |
| Motherboard Compatibility | M-ITX, M-ATX, ATX |
| Number of expansion cards slots | 8 |
| Number of 5.25″ drives | not possible |
| Number of 3.5″ drives | 2x in HDD cage 1x behind the mainboard (instead of 2x 2.5″) 2x next to the mainboard |
| number of 2.5″ drives | 1x on top of power supply cover 1x on top of HDD cage 2x in HDD cage (instead of 3.5″ HDD) 2x behind the mainboard |
| Case fan support Front |
2x 200mm (included) or up to 3x 140mm or up to 3x 120mm |
| Case fan support Top |
1x 200mm or up to 2x 140mm or up to 3x 120mm |
| Case fan support next to mainboard |
up to 3x 120mm |
| Case fan support back |
1x 120mm (included) |
| Radiator Support | Front up to 360mm Top up to 360mm next to mainboard up to 360mm rear 120mm |
| CPU Cooler Support | max. 172mm height |
| Extension cards slots | 8 2x graphics cards vertically mountable |
| Power supply aRGB/fan controller | 1x SATA |
| Graphics cards support | max. 282mm with drive cage max. 400mm without drive cage |
| Power Supply Support | max. 220mm |
| Interface | 1x 3.5mm jack for headphones 1x 3.5mm jack for microphone 2x USB 3.0 type A 2x USB 2.0 type-A |
| Buttons | Power (illuminated) RGB select button |
| Materials | Steel, glass and plastic |
| Miscellaneous | 2 tinted and tempered real glass side windows |
We can already see from the data that Thermaltake has created a bulky case with the Level 20 RS ARGB with plenty of space for fans, hard drives and water cooling components.
Thermaltake Level 20 RS ARGB Layout, design and features exterior …
