Zalman Z7 Neo Review

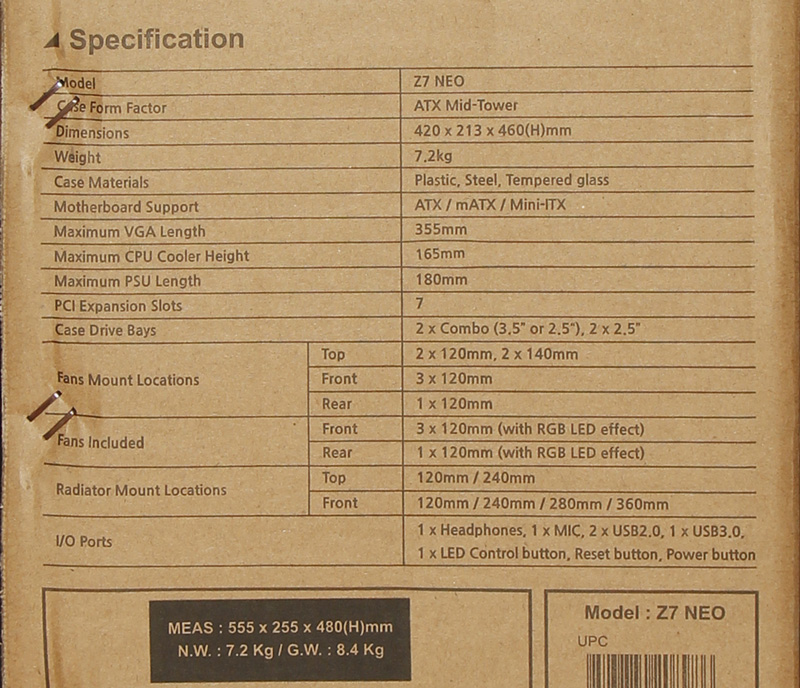

The technical data des Zalman Z7 Neo Mid-Tower case …

Manufacturer Zalman
Description Z7 Neo
Dimensions 460 x 420 x 213 mm (HxWxD)
Weight 7.2 kg
Motherboard Compatibility M-ITX, M-ATX, ATX
Number of expansion cards Slots 7
Number of 5.25″ drives 0
Number 3.5″/2.5″ drives 2
Number of 2.5″ drives 2
Case fan Support Front 3x 120mm with RGB lighting included
Case fan support top max. 2x 120/140mm
Case fan Support rear 1x 120mm with RGB lighting included
Case fan included 4x 120x25mm with RGB lighting
Radiator Support front up to 360mm, top up to 240/280mm, rear 120mm
CPU Cooler Support max. 165mm high
Fan/RGB connection 8x 6-pin combination plug
Power Supply Fan RGB Controller 1x 4-pin Molex
Graphics cards support max. 355mm
Power supply Support max. 180mm
Materials Steel, glass and plastic
Interface 1x headphones, 1 microphone, 2x USB 2.0, 1x USB 3.0

If you would like to get a complete overview of all functions, you can download the user manual at the following link.

But now we’ve browsed through enough data, let’s take a closer look at the case.

Zalman Z7 Neo Mid-Tower Gehäuse Layout, design and features outside …
