CPU Cooler Comparison 2016

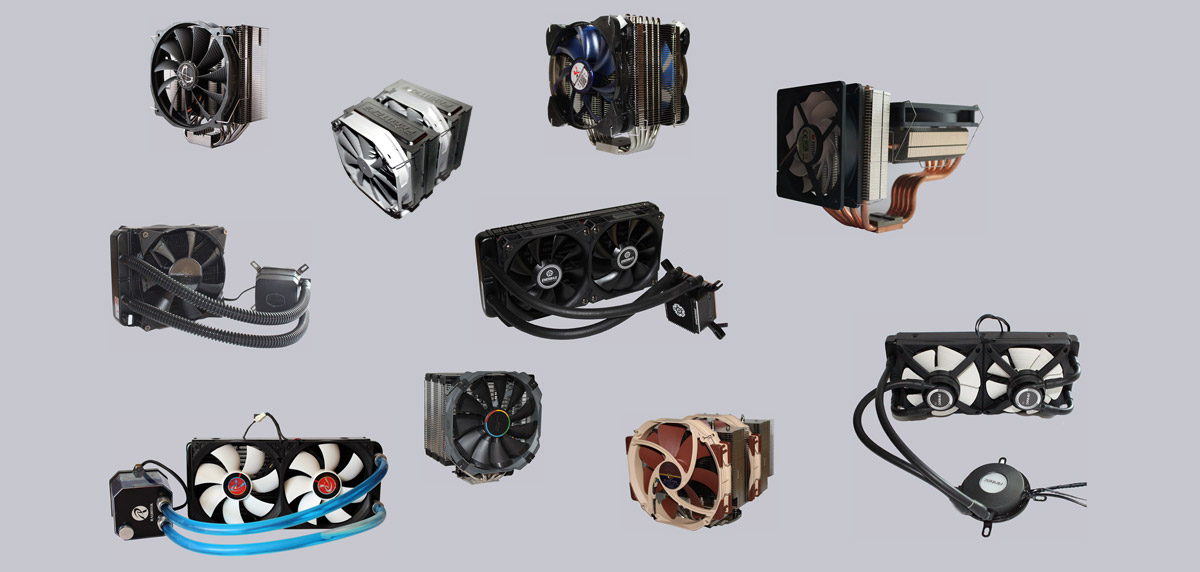

In the last 16 years OCinside has tested several CPU coolers. Today, we have published this CPU Cooler Comparison Chart with selected coolers from Antec, Cooler Master, Cryorig, Enermax, Intel, Noctua, Phanteks, Raijintek, Scythe, Titan and X2 Products, which we have tested on an Intel Core i7 system. So you can easily find the right CPU cooler for your Intel Core i7 PC and compare the cooling results in one chart.

AMD and Intel CPU Cooler Roundup Cooler for Socket AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+, LGA 775, 1150, 1151, 1155, 1156, 1366, 2011, 2011-3 CPUs

cpu_cooler_chart_i7_2016

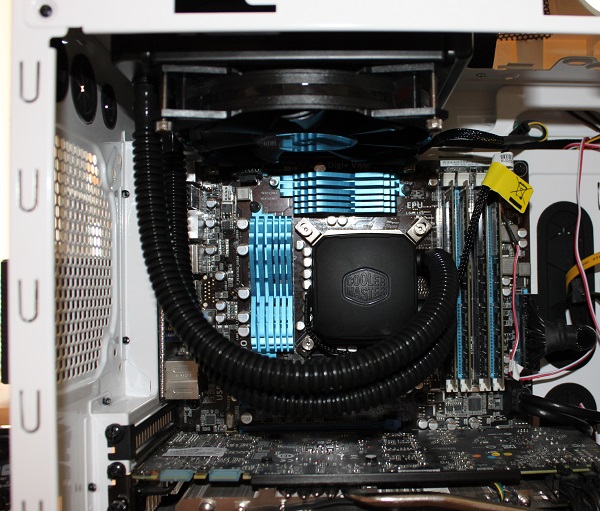

Cooler test setup …

The HSFs are tested with the following system:
Intel Core-i7 2600K @ 4000 MHz with 1.19 Volt
Asus P8P67 Pro Rev 3.1
4x 4 GB DDR3 1600 MHz
MSI GeForce 780ti
Samsung SSD 840 Pro 256 GB
Seasonic 760 W Platinum
CM Storm Stryker
Microsoft Windows 7 Ultimate 64 Bit
cpu_cooler_chart_i7_2016_system

Temperatures are read with the Core Temp 1.0 RC6 and Asus AiSuite II Tools. The program Prime95 get the processor load up to approx. 100%. Measurements are always the peak temperature of the CPU, which is the highest temperature that the processor in the test reached with Prime95 or Idle.

The below coolers are tested on the same system, so their results are therefore well comparable. Of course, the results vary in other systems, but it’s no problem at all, because all values should only be compared with each other.

The ambient temperature was approx. 20°C.

The coolers are tested with different fan speeds and were equipped with different available number of fans (if available).

The boxed Intel Core i7 cooler, Cryorig H5 Ultimate, Noctua NH-D15, Phanteks PH-TC14PE, Scythe Ashura Shadow, Titan Fenrir Siberia Edition and the X2 Products Eclipse IV are conventional air coolers.

The Antec H2O 1250, Cooler Master Nepton 140XL, Enermax Liqtech 240 and Raijintek Triton are ready filled all-in-one watercoolers – so called AIO coolers – with integrated water pump and radiator.

CPU cooler test results …

All tested heatsink fan combinations are listed in the following bar chart and splitted into two results: Idle (blue) and Prime95 CPU with 100% load (green). Here you can easily see the different distributions of the cooling results, e.g. the very high idle tmperature of the boxed cooler, but also the differences of the Prime95 results at low fan speed in comparison to full fan speed. Now one can also listen to each fan sound volume on the last page of each detailed review. Mostly with different fan speeds, because an increased fan speed not only increases the cooling capacity, but unfortunately increases also the fan noise.

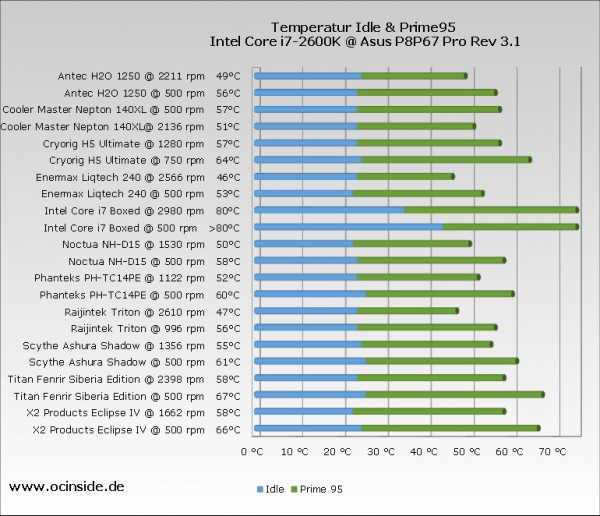

Here are all temperature results in idle and at 100% load in alphabetical order:
cpu_cooler_chart_i7_2016_chart_company

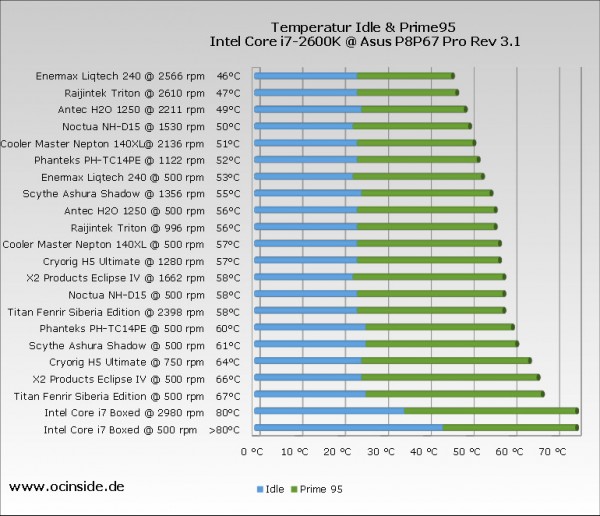

Here are all temperature results in idle and at 100% load sort by the best overall cooling result:
cpu_cooler_chart_i7_2016_chart

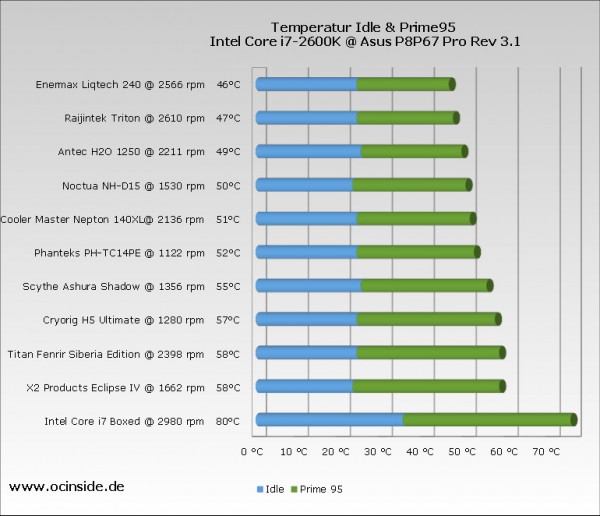

And for easier comparison, here are the cooling results at maximum fan speed, sorted be the best overall cooling result. At the top is the cooler with the best overall cooling result:
cpu_cooler_chart_i7_2016_chart_full_rpm

And here are all cooling results listed in tabular comparison:

Company, type, speed and Review result Idle Prime95
Enermax Liqtech 240 @ 2566 rpm 24 °C 46 °C
Raijintek Triton @ 2610 rpm 24 °C 47 °C
Antec H2O 1250 @ 2211 rpm 25 °C 49 °C
Noctua NH-D15 @ 1530 rpm 23 °C 50 °C
Cooler Master Nepton 140XL @ 2136 rpm 24 °C 51 °C
Phanteks PH-TC14PE @ 1122 rpm 24 °C 52 °C
Enermax Liqtech 240 @ 500 rpm 23 °C 53 °C
Scythe Ashura Shadow @ 1356 rpm 25 °C 55 °C
Antec H2O 1250 @ 500 rpm 24 °C 56 °C
Raijintek Triton @ 996 rpm 24 °C 56 °C
Cooler Master Nepton 140XL @ 500 rpm 24 °C 57 °C
Cryorig H5 Ultimate@ 1280 rpm 24 °C 57 °C
X2 Products Eclipse IV @ 1662 rpm 23 °C 58 °C
Noctua NH-D15 @ 500 rpm 24 °C 58 °C
Titan Fenrir Siberia Edition @ 2398 rpm 24 °C 58 °C
Phanteks PH-TC14PE @ 500 rpm 26 °C 60 °C
Scythe Ashura Shadow @ 500 rpm 26 °C 61 °C
Cryorig H5 Ultimate @ 750 rpm 25 °C 64 °C
X2 Products Eclipse IV @ 500 rpm 25 °C 66 °C
Titan Fenrir Siberia Edition @ 500 rpm 26 °C 67 °C
Intel Core i7 Boxed @ 2980 rpm 35 °C 80 °C
Intel Core i7 Boxed @ 500 rpm 44 °C over 80 °C

Clicking on the respective cooler leads to the selected cooler review result with a summary of the overall impression, installation, price, and with a CPU cooler sound sample. The CPU cooler reviews are each several pages long and also can be found in the Hardware Review section. Additionally, there is the well known OCinside.de interactive fit for fan guide with direct cooler sound to determine which CPU cooler fits on which motherboard and how much space is available after installation for the remaining components like e.g. RAM or graphics card.

Hint: With our interactive Fit for Fan guide you can virtually fit each cooler onto different motherboards – missing coolers will be added with the next update.
