ASRock Z790 PG-ITX/TB4 Motherboard Review

Energy consumption …

The motherboard is certainly no longer the decisive factor when it comes to the power consumption of a PC. Despite all that, we want to show what the motherboard consumes and whether it can deliver accordingly under load.

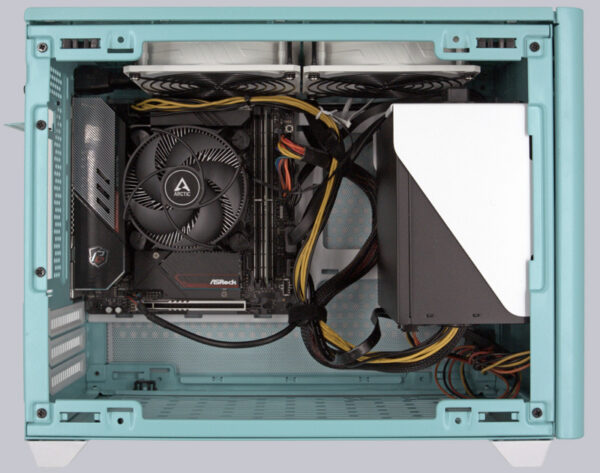

Of course, the system’s energy consumption always depends on the installed components and their load. Our test system consumed a good 60 watts with a memory bar and an M.2 SSD in idle. Under full load in Cinebench 23, we measured a power consumption of a good 100 watts. The heatsinks around the CPU socket did not really get warm here, to be exact it was 42°C above the CPU.

Motherboard CPU GPU Idle Load
ASRock Z790 PG-ITX/TB4 Intel Core i3-12100
LGA1700
Intel UHD Graphics 730 60W 100W
ASRock B650E Taichi AMD Ryzen 5 7600X
Sockel AM5
AMD Radeon Graphics GPU 54W 158W
ASRock X670E Taichi Carrara AMD Ryzen 5 7600X
Sockel AM5
AMD Radeon Graphics GPU 59W 163W
ASRock B550 Taichi Razer Edition AMD Ryzen 7 3800X
Sockel AM4
ASRock Radeon RX 5700 Challenger D 8G OC graphics card 56.5W 318.4W
ASRock X570 Extreme4 AMD Ryzen 7 3800X
Sockel AM4
MSI Radeon R9 280 graphics card 55.6W 273.4W
ASRock Z790 Taichi Intel Core i7-12700K
LGA1700
ASRock Radeon RX 5700 Challenger D 8G OC graphics card 60.3W 304.1W
ASRock Z790 Taichi Intel Core i7-12700K
LGA1700
Intel UHD Graphics 630 GPU 42.7W 226.6W
ASRock Z590 Extreme Intel Core i5-10500
LGA1200
ASRock Radeon RX 5700 Challenger D 8G OC graphics card 44.6W 243.8W
ASRock Z590 Extreme Intel Core i5-10500
LGA1200
Intel UHD Graphics 630 GPU 31.6W 101.7W
ASRock X470 Gaming K4 AMD Ryzen 5 2400G
Sockel AM4
MSI Radeon R9 280 graphics card 43.1W 257.8W
ASRock X470 Gaming K4 AMD Ryzen 5 2400G
Sockel AM4
AMD Radeon Vega GPU 22.7W 88.3W
ASRock Z490 Steel Legend Intel Core i5-10500
LGA1200
ASRock Radeon RX 5700 Challenger D 8G OC graphics card 41.2W 317.4W
ASRock Z490 Steel Legend Intel Core i5-10500
LGA1200
MSI Radeon R9 280 graphics card 51.5W 322.1W
ASRock Z490 Steel Legend Intel Core i5-10500
LGA1200
Intel UHD Graphics 630 GPU 29.2W 147.0W
ASRock Z390 Phantom Gaming X Intel Core i9-9900K
LGA1151 v2
MSI Radeon R9 280 graphics card 53.2W 286.3W
ASRock Z390 Phantom Gaming X Intel Core i9-9900K
LGA1151 v2
Intel UHD Graphics 630 GPU 29.7W 235.3W
ASRock B365 Pro4 Intel Core i9-9900K
LGA1151 v2
MSI Radeon R9 280 graphics card 41.3W 280.4W
ASRock B365 Pro4 Intel Core i9-9900K
LGA1151 v2
Intel UHD Graphics 630 GPU 23.1W 193.1W
ASRock H370 Performance Intel Core i7-8700K
LGA1151 v2
MSI Radeon R9 280 graphics card 49.7W 284.1W
ASRock H370 Performance Intel Core i7-8700K
LGA1151 v2
Intel UHD Graphics 630 GPU 29.1W 126.0W
ASRock Z270 Killer SLI Intel Core i5-7600K
Kaby Lake LGA1151
MSI Radeon R9 280 45.7W 262.9W
ASRock Z270 Killer SLI Intel Core i5-7600K
Kaby Lake LGA1151
Intel HD Graphics 630 GPU 34.8W 117.4W
ASRock X299 Taichi Intel Core i9-7900X
Skylake-X
MSI Radeon R9 280 graphics card 82.5W 345.4W
ASRock X399 Taichi AMD Threadripper
1950X Sockel TR4
MSI Radeon R9 280 77.5W 305.3W
ASRock X370 Taichi AMD Ryzen 1600
Sockel AM4
MSI Radeon R9 280 graphics card 52.5W 265.1W
ASRock X370 Taichi AMD Ryzen 1800X
Sockel AM4
MSI Radeon R9 280 graphics card 55.1W 284.8W
ASRock Z170 Extreme6 Intel Core i5-6600K
Skylake LGA1151
MSI Radeon R9 280 50.5W 259.1W
ASRock Z170 Extreme6 Intel Core i5-6600K
Skylake LGA1151
Intel HD Graphics 530 GPU 36.0W 70.7W
ASRock X99 Extreme6 Intel Core i7-5930K
LGA 2011-3
MSI Radeon R9 280 60.5W 290.4W
ASRock Z97 Extreme6 Intel Core i5-4670K
LGA1151
MSI Radeon R9 280 53.1W 270.7W
ASRock Z97 Extreme6 Intel Core i5-4670K
LGA1151
Sapphire HD6870 55.8W 219.5W
ASRock Z97 Extreme6 Intel Core i5-4670K
LGA1151
Intel HD Graphics 4600 GPU 33.5W 94.5W
ASRock FM2A88X+ Killer AMD A10-7850K
Kaveri Sockel FM2+
Sapphire HD6870 56.3W 233.5W
ASRock FM2A88X+ Killer AMD A10-7850K
Kaveri Sockel FM2+
AMD Radeon R7 GPU 30.2W 118.8W
ASRock FM2A85X-ITX AMD A10-5800K
Trinity Sockel FM2
Sapphire HD6870 52.9W 221.0W
ASRock FM2A85X-ITX AMD A10-5800K
Trinity Sockel FM2
AMD Radeon HD7660D GPU 29.4W 120.4W

How high the power costs of the PC are with or without overclocking depending on the performance and running time can be calculated with our interactive PC power cost calculator:


Interactive power consumption Calculator
